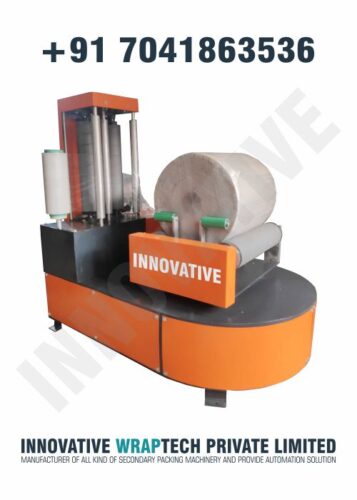

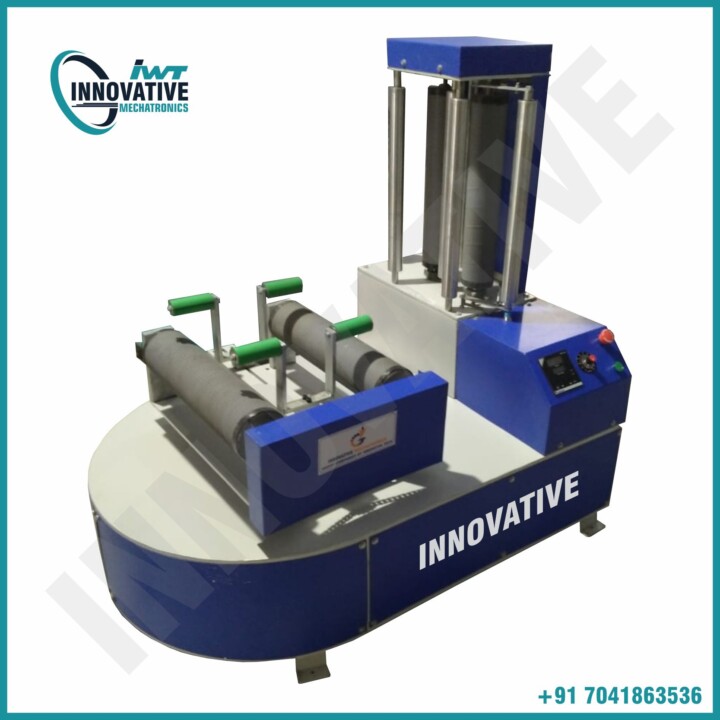

Roll Wrapping Machine With Pre-Stretched System
Reel Stretch Wrapping Machine. Reel Stretch Wrapping Machine is used for stretch film wrapping around the Non-woven, coil, paper roils, rubber product and similar materials manufactured in small reels. Reel Stretch wrapping machine assist in reduction of labor by automating the process of attaching, detaching and pressing the film. For the product to be wrapped, the operator simply places the item on a turn-table and switches the machine to operate.
- IM-002 Reel wrapping machine With pre-stretch unit system use to wrap small paper roll , flat drip pipe, laminated roll , small width paper roll.
- Main advantage of IM-002 save film up-to 300 %
Share
Enquiry about Roll Wrapping Machine With Pre-Stretched System
Video Link
Specification
| WORKING PRODUCT DIAMETER | Width: 150 mm to 400 mm Diameter : 320 MM To 800 Reel weight :Up To 50 KG |
| DIAMETER OF ROLL (STRETCH FILM) | CORE ID:75 MMOD: UP TO 200 MM WIDTH:125 MM TO 300 MM |
| PACKING EFFICIENCY | 30-40 rolls/hour (depend on product ) |
| TURNTABLE SPEED | 0 To 19 RPM (depend on product) |
| DIA. OF TURNTABLE | 400 mm (as per customer requirement) |
| ROLLER SPECIFICATION | Rollers : 2 nos. (m.s)Roller : M.S roller with rubber belt dia. of roller :125mm roller center distance : 205 mm |
| MOTORS WITH VFD | Tune Table Motor & Roller Motor : 1 HP Pre- stretch Motot: 0.5 |
Advantages
- Protection against moistrer and dust
- Prevent teiescoping of rolls
- Save packaging cost, labour and time
- Better identification of wraped product
- Gives stability to product
- Economical way of packing
- Save from atmosphere, rain etc
