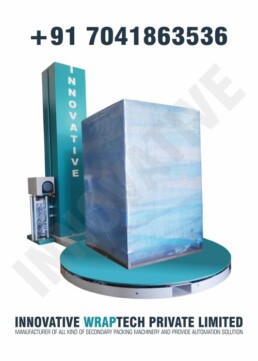

M Type Pallet stretch wrapping machine

We innovate new product M Type pallet wrapping machines. If you have trobling for loading unloading pallet than that machine more suitable for you.

We make M Type pallet wrapping machine for all type pallet like big and small but more suitable for less Than 1500 X 1500 mm pallet.



Share

Video


Specification

MODAL IM-006
Pallet Size MM 1200 L x 1200 W  x 2000 H
Weight Capacity  1000 Kg To 1500 Kg



Power ¨ 415 V. A.C

¨ 3 Phase + Neutral + Earthing (415 V AC 50 Hz)



                                         Turn Table Specification



MAX working Die ¨ 75”
Arm Motor ¨  2 Hp Flame proof Motor
Arm Speed ¨  Up to 15 rpm
Turntable drive ¨  2 Hp
Wrap Height ¨  120 mm
                                              Film delivery system
Stretch Film Roll Diameter ¨ Up to 18 ” Max



¨ ID: up To 3”



¨ OD: up To 10”
